- 【Function】LIPO LIFE 2s or 3S chargers,DC 12V2A input,charging current 0.5A-1.2A-2A optional. LED light indicator, simple and intuitive, charging each CELL separately, high efficiency and high precision. CH3CH2CH1 green light flashing. Indicating balance charging, C3C2C1 green light is always on, indicating full. charger small size (77x50x22mm), light weight (78g), aluminum shell heat dissipation fast.
- 【Charging steps】1--Connect the charger and power supply,and all LED lights up successively.Select charging current: 0.5A-1.2A-2A. 2 -- Select the battery type (battery type selection toggle switch). LIFE battery mode (each cell voltage is 3.6V after full charged) or LIPO battery mode (each cell voltage is 4.2V after full charged). Note:This function must be select before the battery connection to charger.
- 【Charging steps】 3-- Connect the battery to the charger (do not connect 2S and 3S batteries at the same time). the green LED begin to flash which means balance charging, If all green LED stop flashing and remains lighting, the battery is full
- 【Repairable low voltage battery】Connect the battery,LED flashing,indicating normal charging; If leds is off,please check the battery voltage is too low (<1.5v/s).If the voltage of any cell is less than 3V, the charger will enter the low current mode.After 1 minute of charging,if all the leds blink quickly,the battery has been damaged.If the indicator blinks normally,the charger continues to trickle charging,When all the cells reach 3V, the battery will enter the high current charge until full.
- 【AFTER SALES SERVICE 】thank you for choosing DHD balance charger! We wish to present the best to customers. If you have any questions, please contact Amazon or us.

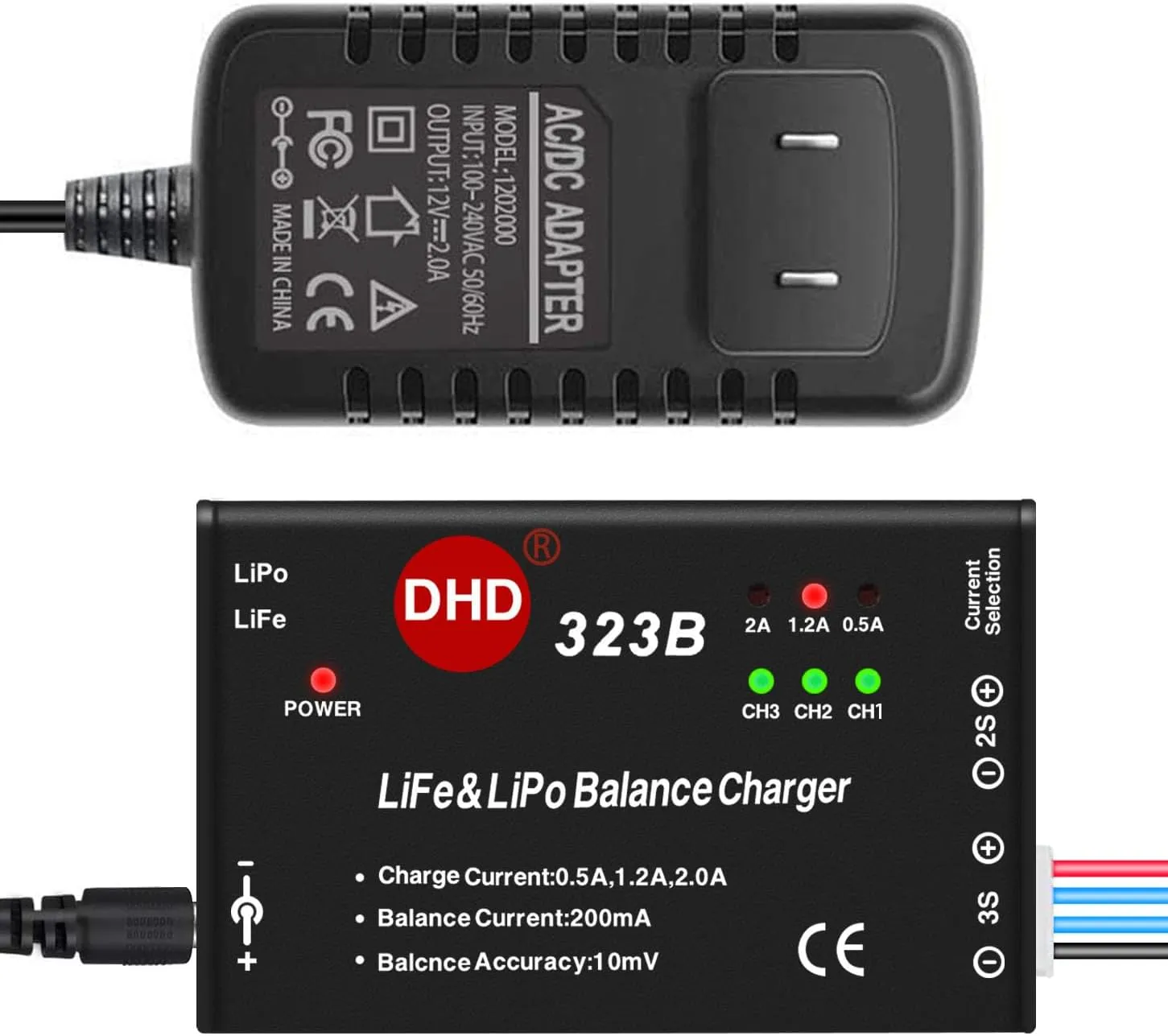

Description:
Brand Name: DHD
Item Name: 323B
Input Voltage: DC 12V 2A
Charging Power: 20W (max)
Charging Current:0.5A/1.2A/2A optional
Balance Current: 200mA
Balance Accuracy: 10mV
Dimension: 77x50x22mm
Weight: 78g
Single Cell Cut-off Voltage: 3.6V (LiFe), 4.2V (LiPo)
for 2S/3S LiPo,LiFe Battery
adapter:
Input:AC100V-240V
Output:DC12V2A for 323B
Package Included:
1x DHD 323B Balance Charger
1x 12V2A adapter Note:
Battery and cables are not included.
Never leave the battery when charging.
Do not allow both batteries to be charged at the same time.
Notes for charger use:
1- Correctly select the input voltage of the charger.
The working voltage suggested in the manual for DC charger is less than the specified voltage,
which may cause the charger not to work or fail.
2- Choose the right type of battery. The wrong type of battery can cause a fire.
3- After charging, please remove the battery and disconnect the power supply.
4- When charging, especially for a long time, someone must watch over it.
5- The charger shall not be used for a long time. It shall be placed in a dry, ventilated and waterproof place.
When it is used again, it shall be electrified for a few minutes and then connected to the battery for charging.
